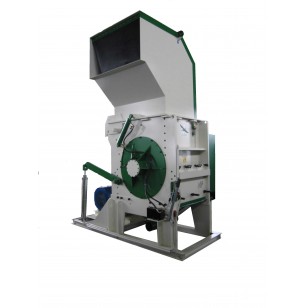

Granulator – G9


The G9 is for the granulation and recycling of various objects of large sizes such as pallets, drums, vases, films, crates, rolls, vulcanised rubber etc.

MAIN FEATURES: this grinder is solid, heavy-duty, high capacity, easy to clean and for maintenance, sieve changing by the pneumatic piston, open and closing hopper by the hydraulic system.

Hourly output 500 – 2000 Kg/h
Mouth 1200 x 1000 mm
Blades’ length 900 mm (3 x 3 + 2 x 3)
Ø rotor 1000 mm
Motor 75 – 132 Kw
Dimensions 2000 x 2000 mm
Weight 7000 Kg
Height 4500 mm
Cutting Length 900 mm
ø max pipe’s diam. 500 mm
