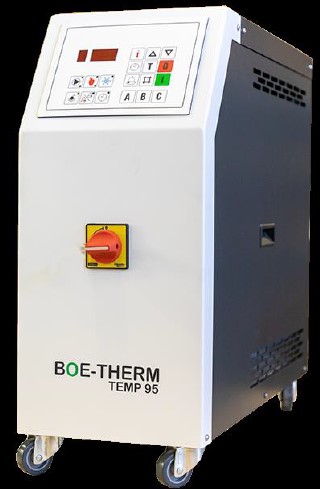

Temperature Control & Cooling

Standard Features
  • Easy operation with digital display
  • Automatic restart
  • Temperature monitoring with alarm function
  • Automatic water filling
  • Indirect and direct cooling
  • Up to 120°C
  • Up to 115 L/min
  • Energy efficient pump
  • Low noise
Additional Features
  • Mould drain
  • External temperature sensor
  • Flow measurement and monitoring
  • Communication with external machines
Technical Specifications
Temperature: 10 - 95°C or 10 – 120°C
Heating capacity: 4.5kW – 9kW – 13.5kW – 18kW – 27kW – 36kW
Heat transfer medium: Water
Pump performance: Max l/min Max Bar Nom l/min Nor bar
  M3 75 2.8 50 2
  M4 85 5.6 50 3.8
  M5 115 5.8 85 4.3
Cooling capacity at ΔT = 60°C   Direct cooling: D2 = 42kW, D4 = 175kW Indirect cooling: l2 = 15kW, l4 = 28kW
Hose connection: 1/2“ (standard)
Voltage: 3x400V / 50Hz, 3x230V / 50Hz 3x460V / 60Hz, 3x230V / 60Hz Other voltages on request
Dimensions: Up to 18kW: L/W/H: 650x265x650mm inc wheel Up to 36kW: L/W/H: 855x330x800mm inc wheel
Tank Volume: Up to 18kW: 6 Litre Up to 36kW: 2x6 Litre
