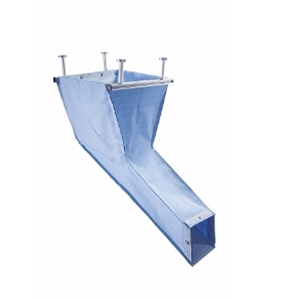

The collecting funnel ATB-S90 with diagonal runout is, compared to the ATB-S, mounted 90° turned under the tool of an injection moulding machine via strong permanent magnets, in direction of the machine. It safely collects the moulded parts after demoulding and transfers them onto a conveyor belt or into a container next to the machine. The funnel is movable and follows the tool. Optional equipment such as a baffler or a removable base ensures damage-free collection and waste reduction of the moulded parts.
